WDD22P1-SOO Conductive Plastic Potentiometer
MODEL:WDD22P1-SOO
Feature：
• Precision linear
• Long mechanical life
• High resolution
• Small dynamic noise
• Convenient and reliable installation

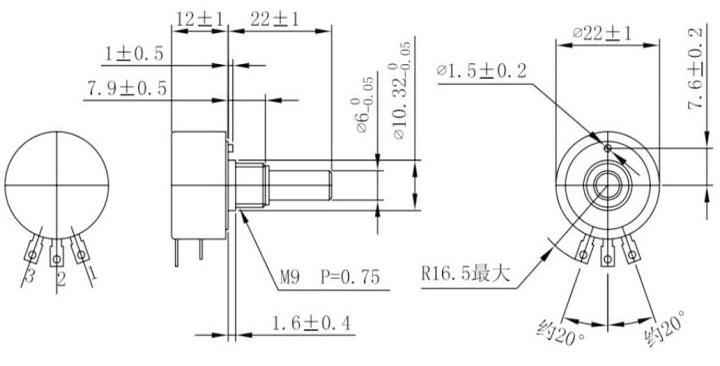

Standard Dimensions
General Specifications
| Electrical | |
|---|---|
| Standard Resistance | 1KΩ、2KΩ、5KΩ、10KΩ |
| Resistance Tolerance | Standard grade ±15% (L); Precision grade ±10% (K) |
| Independent Linearity | Standard grade: ±1.5%;Precision grade: ±1.0% |
| Electrical Travel | 320°±5° |
| Power Rating | 2W |
| Resist.TemperatureCoefficient | ≤±0.04%/℃ |
| Insulation Resistance | ≥1000MΩ（1000VD.C） |
| Dielectric Stregth | 1000V(AC.RMS)1min |
| Output smoothness | ≤±0.1% |
| Resolution | Infinitesimal |
| Mechanical | |
|---|---|
| Mechanical Travel | 360°（endless） |
| Starting Torque | ≤10*10﹣?N.M |
| Environmental | |
|---|---|
| Life Expectancy | 20*10?cycle |
| Operating Temperature | —55℃~+125℃ |
Special Specifications Available
Shaft Length,Diameter,stopper,special electrical travel,Special machining on the shaft.
